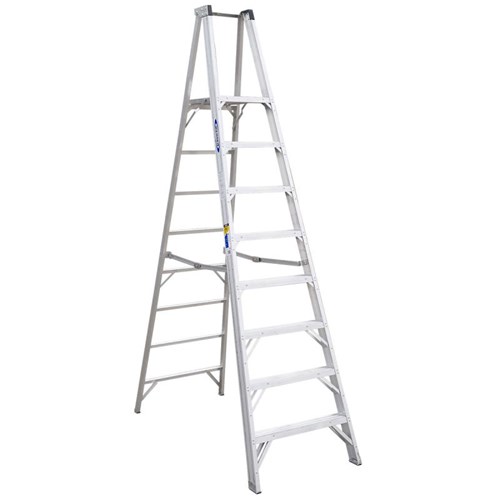

P408 8' Type IAA Aluminum Platform Ladder

P408

Werner Co.

The P400 series aluminum platform ladders have a duty rating of 375 pounds and feature a safety guard rail to encourage proper use. The large platform provides a secure and comfortable work area, and the slip-resistant TRACTION-TRED® steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The 10', 12' and 14' models have a duty rating of 300 pounds. These ladders are lightweight and easy to transport.

Quick Overview

    "Performance Overview "
    StyleSizeReach HeightLoad CapacityType
    Twin8'14'375 lbs.Type IAA Duty Rating

    Features include:

  • Safety guard rail
  • Large, platform provides secure and comfortable work area
  • Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
  • Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
  • Full set of rear horizontals are spaced one per foot
  • Heavy duty aluminum foot bracket with slip-resistant foot pad
  • Heavy duty internal spreaders
  • Internal spreaders on 8’ and above

Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-1/8"
  • Rear Rails Dimension: 1-3/4"
  • Rear Flange Dimension: 1"
  • Steps Dimension: 3"

  • Specifications

  • Size: 8'
  • Height (Size) to Platform: 8'
  • Rail Length: 10'
  • Reach Height: 14'
  • Max. Standing Height: 7'8"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Aluminum
  • Approx. Width: 31-3/4"
  • Approx. Spread: 79-1/2"
  • With Pail Shelf: No
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 20.3
  • Approx. Shipping Wt. Lbs.: 45.5

  • Additional T400 Series Models:
    Model No.SizeHeight (Size) to PlatformRail LengthReach HeightMax. Standing HeightLoad Capacity
    P4044'4'6'10'3'10"375 lbs.
    P4066'6'8'12'5'9"375 lbs.
    P4088'8'10'14'7'8"375 lbs.
    P41010'10'12'16'9'7"300 lbs.
    P41212'12'14'18'11'6"300 lbs.
    P41414'14'16'20'13'5"300 lbs.

    Additional Information


    Manufacturer: Werner Co.
    For More Information on the P408 8' Type IAA Aluminum Platform Ladder, [Click Here] to Link to Manufacturer Web Site
