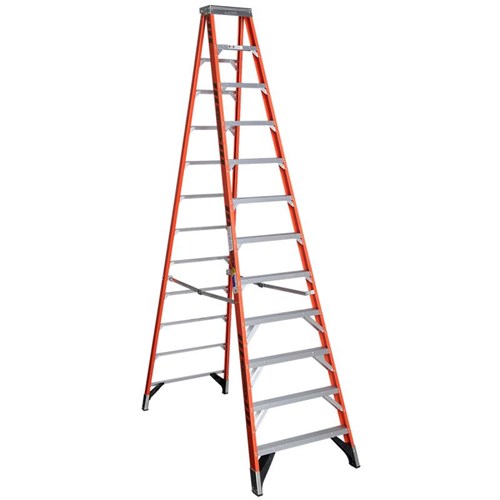

Built to last, the Werner 375-pound duty rated 7400 ladders are rugged and ready for the job. These ladders feature extra heavy duty aluminum HolsterTop®s, internal spreaders and external rail shields for long lasting durability. With the EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
"
Performance Overview "
| Style | Size | Reach Height | Load Capacity | Type |
| Single Sided | 12' | 16' | 375 lbs. | Type IAA Duty Rating |
Features include:
- Extra heavy duty aluminum HolsterTop® with thick side plates
- Back-up plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
- Full set of rear horizontals are knee braced and spaced one per foot
- Extra heavy duty internal aluminum spreaders
- Aluminum external rail shield helps protect against abrasion damage
- Glas*Mark® Violator stripes on rails allow ladder to be more visible
- Slip-resistant foot pads attached to the EDGE® structure
- The EDGE® bracing system helps to decrease damage to rail
- Every rivet backed up by metal, metal plates or washers to protect rails
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?
Hours:
Phone: (937) 278-1736
Email: rob.wagner@day-consupplies.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension: 7-1/4" x 14-7/8"
Front Rails Dimension: 3-1/8"
Front Flange Dimension: 1-3/16"
Rear Rails Dimension: 1-7/8"
Rear Flange Dimension: 1-3/16"
Steps Dimension: 3"
Specifications
Size: 12'
Reach Height: 16'
Max. Standing Height: 9'7"
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Performance Rating: 5 Satr
Material: Fiberglass
Approx. Width: 35-1/2"
Approx. Spread: 79-7/8"
With Pail Shelf: No
Spreader Material: Aluminum
Certifications: ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit: 14.8
Additional 7400 Series Models:
| Model No. | Size | Reach Height | Max. Standing Height | Approx. Width | Approx. Spread | Approx. Cu. Ft. Per Unit |
| 7403 | 3' | 7' | 1' | 19-3/4" | 24-3/8" | 2.5 |
| 7404 | 4' | 8' | 1'11" | 21-1/2" | 30-1/2" | 3.5 |
| 7405 | 5' | 9' | 2'10" | 23-1/4" | 36-3/4" | 4.6 |
| 7406 | 6' | 10' | 3'10" | 25" | 42-7/8" | 5.8 |
| 7407 | 7' | 11' | 4'9" | 26-3/4" | 49" | 7.1 |
| 7408 | 8' | 12' | 5'9" | 28-1/2" | 55-1/4" | 8.5 |
| 7410 | 10' | 14' | 7'8" | 32" | 67-1/2" | 11.4 |
| 7412 | 12' | 16' | 9'7" | 35-1/2" | 79-7/8" | 14.8 |
Additional Information
Manufacturer: Werner Co.
For More Information on the 7412 12' Type IAA Fiberglass Step Ladder,
