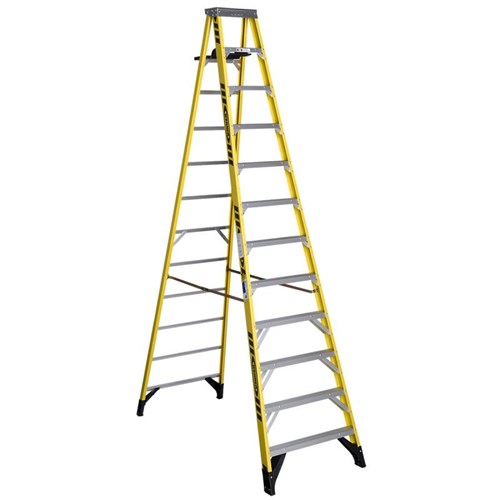

Werner 7300 stepladders have a duty rating of 375 pounds and feature heavy duty aluminum HolsterTops. With a full set of horizontals and heavy duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and EDGE bracing system help decrease damage to the rails. The slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces. The GLAS*MARK Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are non-conductive for working near electricity.
"
Performance Overview "
| Style | Size | Reach Height | Load Capacity | Type |
| Single Sided | 12' | 16' | 375 lbs. | Type IAA Duty Rating |
Features include:
- Extra heavy duty aluminum HolsterTop with thick side plates
- Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each front rail
- SPILL-PROOF Plastic pail shelf automatically closes with stepladder
- Slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces
- Heavy duty internal spreaders
- Full set of rear horizontals spaced one per foot
- Glas*Mark® Violator stripes on rails allow ladder to be more visible
- Molded external rail shield helps protect against abrasion damage
- The EDGE® bracing system helps to decrease damage to rail
- Slip-resistant foot pads attached to the EDGE® structure
- Plastic external rail shield helps protect against abrasion damage
- Every rivet backed up by metal plate or washer to protect rails
Interested in this item or want more information?
Hours:
Phone: (937) 278-1736
Email: rob.wagner@day-consupplies.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension: 7-1/4" x 14-7/8"
Front Rails Dimension: 3-1/8"
Front Flange Dimension: 1-3/16"
Rear Rails Dimension: 1-7/8"
Rear Flange Dimension: 1-3/16"
Steps Dimension: 3"
Specifications
Size: 12'
Reach Height: 16'
Max. Standing Height: 9'7"
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Performance Rating: 5Star
Material: Fiberglass
Approx. Width: 35-1/2"
Approx. Spread: 79"
With Pail Shelf: Yes
Spreader Material: Steel
Certifications: ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit: 14.8
Approx. Shipping Wt. Lbs.: 53
Additional 7400 Series Models:
| Model No. | Size | Reach Height | Max. Standing Height | Approx. Width | Approx. Spread | With Pail Shelf |
| 7303 | 3' | 7' | 1' | 19-3/4" | 23-1/2" | No |
| 7303S | 3' | 7' | 1' | 19-3/4" | 23-1/2" | Yes |
| 7304 | 4' | 8' | 1'11" | 21-1/2" | 29-3/4" | No |
| 7304S | 4' | 8' | 1'11" | 21-1/2" | 29-3/4" | Yes |
| 7305 | 5' | 9' | 2'10" | 23-1/4" | 35-7/8" | No |
| 7305S | 5' | 9' | 2'10" | 23-1/4" | 35-7/8" | Yes |
| 7306 | 6' | 10' | 3'10" | 25" | 42" | No |
| 7306S | 6' | 10' | 3'10" | 25" | 42" | Yes |
| 7308 | 8' | 12' | 5'9" | 28-1/2" | 54-3/4" | No |
| 7308S | 8' | 12' | 5'9" | 28-1/2" | 54-3/4" | Yes |
| 7310 | 10' | 14' | 7'8" | 32" | 66-5/8" | No |
| 7310S | 10' | 14' | 7'8" | 32" | 66-5/8" | Yes |
| 7312 | 12' | 16' | 9'7" | 35-1/2" | 79" | No |
| 7312S | 12' | 16' | 9'7" | 35-1/2" | 79" | Yes |
| FIAA06 | 6' | 10' | 3'10" | 25" | 42" | No |
Additional Information
Manufacturer: Werner Co.
For More Information on the 7312S 12' Type IAA Fiberglass Step Ladder,
[Click Here] to Link to Manufacturer Web Site
