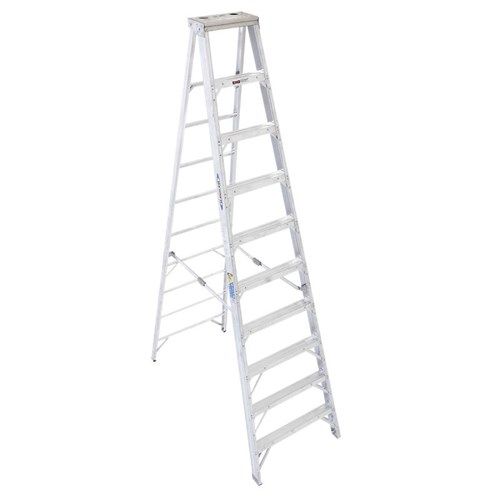

410 10' Type IAA Aluminum Step Ladder

410

Werner Co.

The aluminum 400 series of stepladders has a duty rating of 375 pounds and features heavy gauge TOOL-TRA-TOPs. All steps are knee braced and the TRACTION-TRED steps are slip resistant. The rear rail is a full U channel and a full set of rear horizontals are spaced one per foot. The 14' and 16' models carry a duty rating of 300 pounds.

Quick Overview

    "Performance Overview "
    StyleSizeReach HeightLoad CapacityType
    Single Sided10'14'375 lbs.Type IAA Duty Rating

    Features include:

  • Heavy gauge TOOL-TRA-TOPĀ® with thick side plates
  • Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
  • All steps are knee-braced
  • Slip-resistant TRACTION-TREDĀ® steps are double riveted to rails for durability
  • Heavy duty internal spreaders
  • Full set of rear horizontals spaced one per foot
  • Full U-channel rear rails
  • Full set of rear horizontals and spaced one per foot
  • Slip-resistant foot pad
  • Optional molded pail shelf kit, model no. PK76-6
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Top Dimension: 7" x 14"
  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-1/8"
  • Rear Rails Dimension: 1-3/4"
  • Rear Flange Dimension: 1"
  • Steps Dimension: 3"

  • Platform Depth: 12-5/8" x 15"

  • Platform Width: 12-5/8" x 15"

  • Specifications

  • Size: 10'
  • Reach Height: 14'
  • Max. Standing Height: 7'8"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Aluminum
  • Approx. Width: 31-3/4"
  • Approx. Spread: 67"
  • With Pail Shelf: No
  • Spreader Material: Aluminum
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 17
  • Approx. Shipping Wt. Lbs.: 43.5

  • Additional 7400 Series Models:
    Model No.SizeReach HeightMax. Standing HeightApprox. Width
    4044'1'11"375 lbs.Type IAA Duty Rating
    4066'3'10"375 lbs.Type IAA Duty Rating
    4088'5'9"375 lbs.Type IAA Duty Rating
    41010'7'8"375 lbs.Type IAA Duty Rating
    41212'9'7"375 lbs.Type IAA Duty Rating
    41414'11'6"300 lbs.Type IA Duty Rating
    41616'13'5"300 lbs.Type IA Duty Rating

    Additional Information


    Manufacturer: Werner Co.
    For More Information on the 410 10' Type IAA Aluminum Step Ladder, [Click Here] to Link to Manufacturer Web Site
