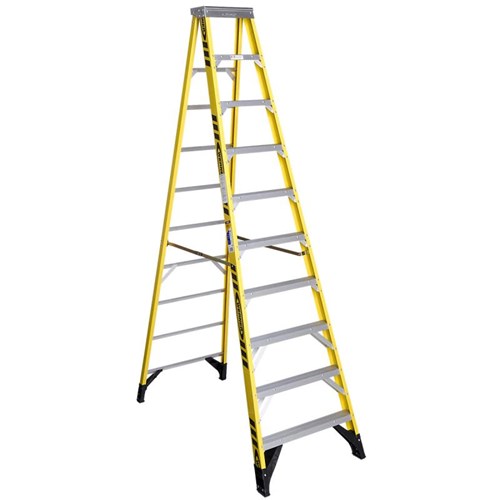

7310 10' Type IAA Fiberglass Step Ladder

7310

Werner Co.

Werner 7300 stepladders have a duty rating of 375 pounds and feature heavy duty aluminum HolsterTops. With a full set of horizontals and heavy duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and EDGE bracing system help decrease damage to the rails. The slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces. The GLAS*MARK Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are non-conductive for working near electricity.

Quick Overview

    Performance Overview

    StyleSizeReach HeightLoad CapacityType
    Single Sided 10'14'375 lbs.Type IAA Duty Rating

    Features include:

  • Extra heavy duty aluminum HolsterTop with thick side plates
  • Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each front rail
  • Slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces
  • Heavy duty internal spreaders
  • Full set of rear horizontals spaced one per foot
  • Glas Mark Violator stripes on rails allow ladder to be more visible
  • The EDGE bracing system helps to decrease damage to rail
  • Molded external rail shield helps protect against abrasion damage
  • Slip-resistant foot pads attached to the EDGE structure
  • Plastic external rail shield helps protect against abrasion damage
  • Every rivet backed up by metal, metal plates or washers to protect rails
  • Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Top Dimension: 7-1/4" x 14-7/8"
  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-3/16"
  • Rear Rails Dimension: 1-7/8"
  • Rear Flange Dimension: 1-3/16"
  • Steps Dimension: 3"

  • Specifications

  • Size: 10'
  • Reach Height: 14'
  • Max. Standing Height: 7'8"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Approx. Width: 32"
  • Approx. Spread: 66-5/8"
  • With Pail Shelf: No
  • Spreader Material: Steel
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 11.4
  • Approx. Shipping Wt. Lbs.: 40.5

  • Additional 7400 Series Models:
    Model No.SizeHeight (Size) to PlatformRail LengthReach HeightMax. Standing HeightLoad Capacity
    73033'7'1'19-3/4"23-1/2"No
    7303S3'7'1'19-3/4"23-1/2"Yes
    73044'8'1'11"21-1/2"29-3/4"No
    7304S4'8'1'11"21-1/2"29-3/4"Yes
    73055'9'2'10"23-1/4"35-7/8"No
    7305S5'9'2'10"23-1/4"35-7/8"Yes
    73066'10'3'10"25"42"No
    7306S6'10'3'10"25"42"Yes
    73088'12'5'9"28-1/2"54-3/4"No
    7308S8'12'5'9"28-1/2"54-3/4"Yes
    731010'14'7'8"32"66-5/8"No
    7310S10'14'7'8"32"66-5/8"Yes
    731212'16'9'7"35-1/2"79"No
    7312S12'16'9'7"35-1/2"79"Yes
    FIAA066'10'3'10"25"42"No
