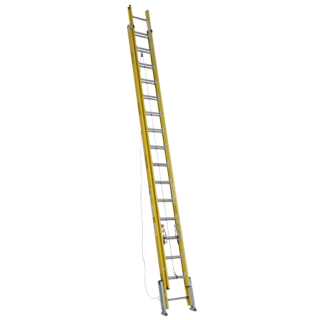

32' Type IAA Fiberglass D-Rung Leveling Extension Ladder

D7132-2LV

Werner Co.

The D7100-2LV series extension ladders boast a duty rating of 375 pounds and have factory-installed LeveLok levelers to enable the ladders to adapt to uneven terrain.

Quick Overview

    Features:
  • Ideal for utility and telecommunication industries
  • LeveLok is a registered trademark of the LeveLok Corporation.
  • Factory installed LeveLok Leveler enables ladder to adapt to uneven terrain
  • With simple foot action, Leveler extends up to 10” in 3/16” increments
  • Exclusive ALFLO Rung Joint Means TWIST-PROOF Performance
  • 1-5/8" Slip-resistant TRACTION-TRED D-rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Interlocking Side Rails with nylon coated internal rail guides on bottom of fly section increase ease of operation
  • External guides at top of base secton securely interlock rails
  • Rugged gravity spring locks operate smoothly
  • Base and fly separate easily to use base section as single ladder
  • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

The D7100-2LV series extension ladders boast a duty rating of 375 pounds and have factory-installed LeveLok levelers to enable the ladders to adapt to uneven terrain. With simple foot action, each leveler can extend up to 10" in 3/16" increments. These ladders are ideal for utility or telecommunication industries. The external guides at the top of the base section secure the interlocking rails. The top of the fly section has pre-pierced holes for easy installation of accessories. The base and fly sections easily separate to use the base section as a single ladder. Fiberglass rails are non-conductive for working near electricity. (36' & 40' do not have interlocking rails)


Specifications:
  • Size: 32'
  • Reach Height: 31'
  • Max Working Length: 29'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 13.7
  • Approx. Shipping Wt. Lbs.: 90.5

    • Dimensions:
  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-5/8"
  • 1-5/8": 16-1/8"
  • Base Width: 19" outside rails, 22-3/4" outside shoes

    • Additional D7100-2LV Series Models:
    Model No.SizeReach HeightMax Working LengthLoad CapacityType
    D7120-2LV 20'19'17'375 lbs.Type IAA Duty Rating
    D7124-2LV 24'23'21'375 lbs.Type IAA Duty Rating
    D7128-2LV 28'27'25'375 lbs.Type IAA Duty Rating
    D7132-2LV 32'31'29'375 lbs.Type IAA Duty Rating
    D7136-2LV 36'34'32'300 lbs.Type IA Duty Rating
    D7140-2LV 40'37'35'300 lbs.Type IA Duty Rating

    Additional Information

    Manufacturer: Werner Co.
    For More Information on the 32' Type IAA Fiberglass D-Rung Leveling Extension Ladder, [Click Here] to Link to Manufacturer Web Site
