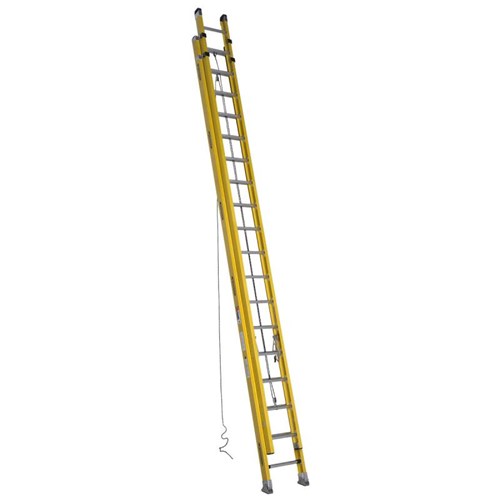

36' Type IAA Fiberglass D-Rung Extension Ladder

D7136-2

Werner Co.

The D7100-2 extension ladders boast a duty rating of 375 pounds and feature the exclusive ALFLO rung joint that guarantees TWIST-PROOF peformance. External guides at top of base section help secure the interlocking siderails. Pre-pierced holes at the top of the fly section allow for easy field installation of accessories. The plate and rung assembly are riveted at four points to each side rail. The TRACTION-TRED D rungs are slip resistant and the durable rail shield and shoe bracket protects the rail from damage. (36' & 40' versions rated at 300 pounds and do not have interlocking rails)

Quick Overview

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-1/4" Slip-resistant Traction-Tred D-rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Smooth operating pulley with polypropylene rope
  • Interlocking Side Rails with nylon coated internal rail guides on bottom of fly section increase ease of operation
  • External guides at top of base secton securely interlock rails
  • Slip-resistant Traction-Tred D-rungs
  • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Durable rail shield and shoe bracket protects rail from damage
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
  • Ideal for utility and telecommunication industries
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 4"
  • Flange Dimension: 1-3/4"
  • Rung Dimension: 1-3/4"
  • Fly Width: 16-3/4"
  • Base Width: 22" outside shoes

  • Specifications

  • Size: 36'
  • Reach Height: 34'
  • Max Working Length: 32'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating:4 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 23.8
  • Approx. Shipping Wt. Lbs.: 113

  • Additional D7100-2 Series Models:
    Model No.SizeReach Height Max Working Length Load Capacity Type
    D7116-216'16'13'375 lbs.Type IAA Duty Rating
    D7120-220'19'17'375 lbs.Type IAA Duty Rating
    D7124-224'23'21'375 lbs.Type IAA Duty Rating
    D7128-228'27'25'375 lbs.Type IAA Duty Rating
    D7132-232'31'29'375 lbs.Type IAA Duty Rating
    D7136-236'34'32'300 lbs.Type IA Duty Rating
    D7140-240'37'35'300 lbs.Type IA Duty Rating

    Additional Information


    Manufacturer: Werner Co.
    For More Information on the 36' Type IAA Fiberglass D-Rung Extension Ladder, [Click Here] to Link to Manufacturer Web Site
