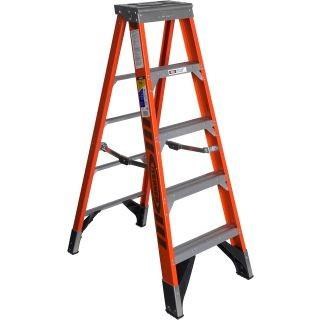

5 ft Type IAA Fiberglass Step Ladder

7405

Werner Ladder

Quick Overview

  • Extra heavy duty aluminum HolsterTop with thick side plates
  • Back-up plates reinforce all top connectors
  • Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
  • Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
  • Full set of rear horizontals are knee braced and spaced one per foot
  • Extra heavy duty internal aluminum spreaders
  • Aluminum external rail shield helps protect against abrasion damage
  • GLAS*MARK® Violator stripes on rails allow ladder to be more visible
  • Slip-resistant foot pads attached to the EDGE® structure
  • EDGE® bracing system helps to decrease damage to rail
  • Every rivet backed up by metal, metal plates or washers to protect rails
  • Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details




Specifications

FeatureSize / Details
Size5 ft
Reach Height9 ft
Max. Standing Height2 ft 10 in
Description of Top FeaturesParts tray, 2 drill holes, 2 tool slots, 3 tool holes
Edge BracingHeavy
Load Capacity375 lbs
TypeType IAA Duty Rating
Performance Rating
MaterialFiberglass
Approx. Width23-1/4 in
Approx. Spread36-3/4 in
With Pail ShelfNo
Spreader MaterialAluminum
CertificationsANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit4.6
Approx. Shipping Wt. Lbs.20

Additional Information


Manufacturer: Werner Ladder
