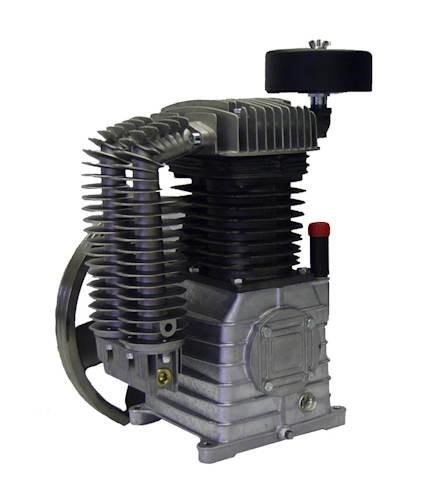

Two Stage Belt Drive Pumps for Repair or OEM Applications (5 - 7.5 HP)

PMP22K30CH

Rolair

Quick Overview

    Standard Equipment

    • 15.16" Aluminum Flywheel

    Specifications

    HORSE POWER 5 - 7.5 HP
    RPM 800-1200
    CFM DISPLACED 20.52 - 30.78
    CFM DELIVERED 16.01 - 23.63 @ 175 PSI
    LUBRICATION TYPE Splash Lubrication
    PUMP OIL CAPACITY 47 oz.
    BORE LOW PRESSURE 4.13
    BORE HIGH PRESSURE 2.05
    STROKE 3.31
    FLYWHEEL DIAMETER 15.16"
    NUMBER OF CYLINDERS 2
    V-BELTS 2-A
    SHIPPING WEIGHT 83.8 lb.
Interested in this item or want more information?

Hours:

Phone: (937) 278-1736

Email: rob.wagner@day-consupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details


About the Pump

Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lammelar Reed Valves, Oil Sight Gauge, Low RP

Additional Information


Manufacturer: Rolair
For More Information on the Two Stage Belt Drive Pumps for Repair or OEM Applications (5 - 7.5 HP), [Click Here] to Link to Manufacturer Web Site
